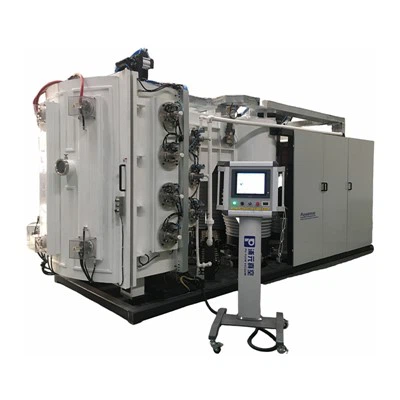

Multi-arc Coating Machine

Delivery term:The date of payment from buyers deliver within days
  • Price:

    Negotiable

  • minimum:

  • Total supply:

  • Delivery term:

    The date of payment from buyers deliver within days

  • seat:

    Jiangsu

  • Validity to:

    Long-term effective

  • Last update:

    2025-09-05 01:52

  • Browse the number:

    396

Send an inquiries
Company Profile
Kunshan Puyuan Vacuum Technology Engineering Co.,Ltd.
By certification [File Integrity]
Contact:

pyzk2025(Mr.)

Email:

Telephone:

Phone:

Area:

Jiangsu

Address:

No. 136 Juxiang Road, Zhangpu Town, Kunshan City, Jiangsu Province

Website: https://www.pyvacuum.com/ http://pyzk2025.huiqiti.com/
Product details


Operational principle：







Multi-arc coating machine is a equipment that uses the principle of vacuum arc discharge to evaporate and ionize the cathode target (source material) in a vacuum environment and deposit it on the surface of the workpiece to form a thin film.









Applications:












  • Improve the performance and life of tools, cutters and molds (hard coating)

  • Provides aesthetically pleasing, durable, environmentally friendly decorative surfaces (decorative coatings)

  • Improve the wear resistance, friction reduction and corrosion resistance of mechanical parts (functional coating)



















































Features:







High ionization rate:



Excellent film-base bonding, excellent dense structure and good performance.







High-energy ion bombardment:



Helps form dense, strongly bonded films and can be deposited at lower temperatures.







High deposition rate:



Compared with other PVD technologies, multi-arc plating generally has a higher deposition rate.







Suitable for hard coatings:



It is particularly good at depositing various metal nitrides, carbides, oxides and other super-hard, wear-resistant and corrosion-resistant coatings (such as TiN, CrN, TiAlN, DLC, etc.), and is widely used in tools, molds, wear-resistant parts, decorative plating and other fields.









Specification:







































































Multi-arc Coating Machine

Model

HL-600

HL-800

HL-1000

HL-1200

HL-1400

HL-1500

HL-1600

Chamber size

Φ600×800MM

Φ800×1000MM

Φ1000×1200MM

Φ1200×1400MM

Φ1400×1600MM

Φ1500×1500MM

Φ1600×1800MM

Vacuum unit

KT400 Diffusion pump unit

KT500 Diffusion pump unit

KT500 Diffusion pump unit

KT630 Diffusion pump unit

Double KT630 Diffusion pump unit

Double KT630 Diffusion pump unit

Double KT630 Diffusion pump unit

Coating system

Dedicated multi-arc coating power supply + multi-function twin magnetic ring arc target + cylindrical arc target (optional)

Auxiliary coating system

Low temperature ion-assisted source (no heating system required except for tool plating)

Inflation system

Mass flow meter

Control method

Manual or fully automatic

Pumping rate

5×10-3Pa﹤15min

Ultimate vacuum

5X10-4Pa

Remark

The above equipment parameters are for reference only, and are designed and customized according to the actual process requirements of customers.
